CLLLBF - Linear Direct/Indirect Lighting Channel

Features & Specifications

* Easy Installation

* Innovative anti-lightlead clips in the space between diffuser and end-cap

* Aluminum Channel

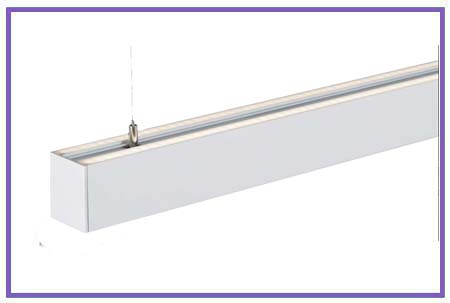

HSL CLLLBF series is a linear direct/indirect channel that is only 2.2" wide and 3.15" height. It features 60% downlight and 40% uplight. Four foot and eight foot lengths can be used individually or joined together for longer runs. Recommend up to 16 ft with one power feed. Two strips of led on the top of the channel provides the uplight. Frosted lens snap into place to provide comfortable, glare free lighting. An Aluminum Channel houses a snap in LED gear try with the LED arrays and driver. The gear tray has plug in module for wiring harness to allow easy electrical joining of two channels as well as a plug in for the pendant mounting kit. Mechanical joiners allow easy joining of two channels with allen screws (joiner tool sold separately). Aluminum housing is available in white or satin aluminum and can be painted to your choice of finishes (consult). End caps can be painted to match or left in the satin aluminum or white finish. Available with 5 or 12 Foot pendant mounting kit with five wire power feed on one end and cable only on the other. White canopy kit comes standard with each pendant kit. Canopies can also be painted (consult). Integral Multi-Volt driver dims easily with 0-10V controls that require 5 wires.
